FEATURES:

• State-of-the-art technology with host of features, a must for today’s shop process quality engineering
• Two level password, prevents unauthorized alteration
• Multiple-level display intensity for operators comfort

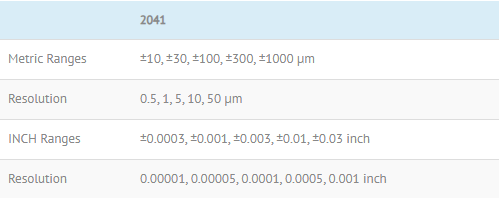

• Inch & metric measuring ranges
• Static & dynamic measurement
• Permits incorporation of complex formulae for probe combination
• Display of tolerance and control limit status – supports process control
• Classifies tolerance band into uniform or non-uniform tailor made grades
• Permits menu entries up to 16 different settings for quick application changeover
• Wide range of process control based electrical outputs facilitates automation
• Auto calibration
• Compatible with half bridge and LVDT type inductive measuring probe
• RS232 based interface with real time tagged measurements
• Aesthetically appealing, sturdy and ergonomic design, suitable for shop-floor applications
• USB interface to PC and flash drive
