BAKER 2045 ELECRONIC COLUMN | MICROPROCESSOR BASED TWIN CHANNEL ELECTRONIC GAUGE

BAKER 2045 ELECRONIC COLUMN | MICROPROCESSOR BASED TWIN CHANNEL ELECTRONIC GAUGE

Delivery 4 Weeks

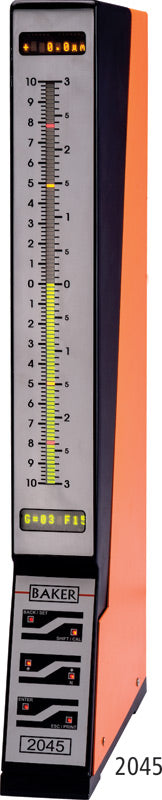

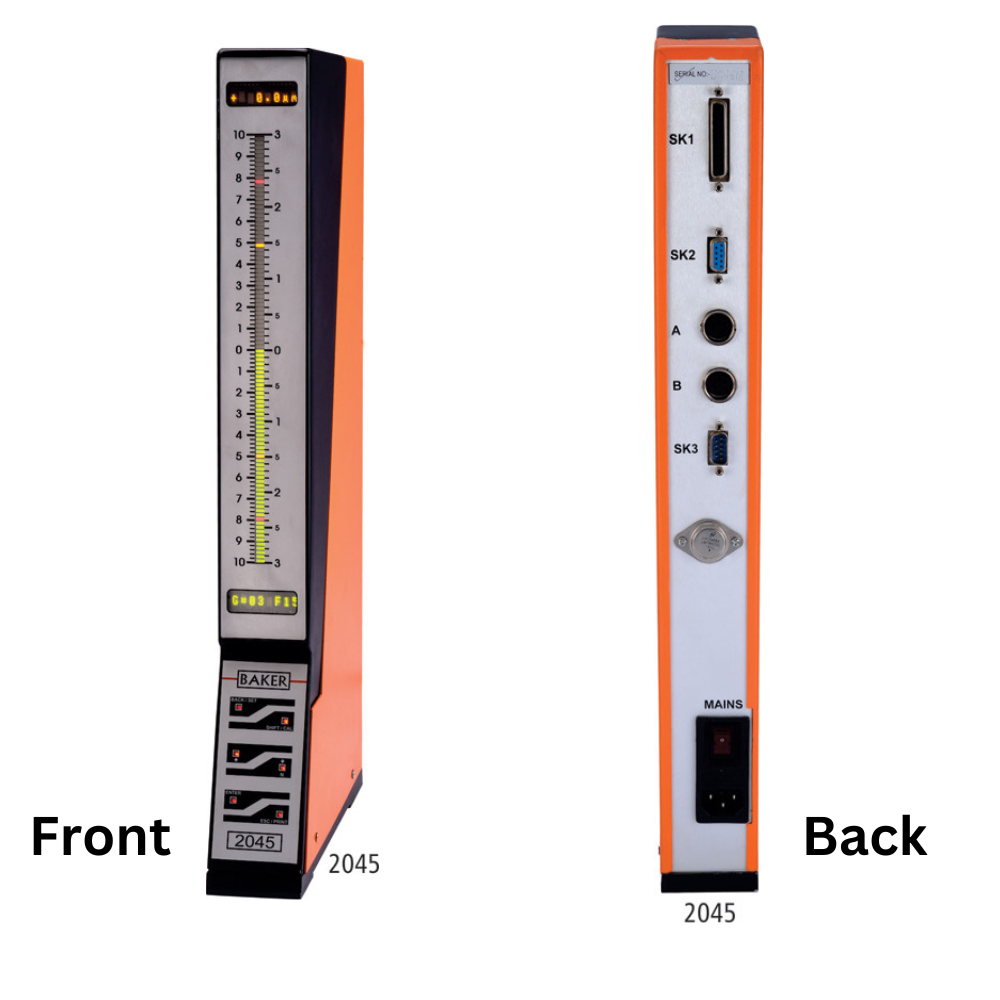

BAKER Electronic, Microprocessor Based, Column Gauge Type 2045N
with Tri Color Bar-graph & Digital Display, having two inputs & one result.

  • 101 segment, 3 colour LED bar-graph column type measurement display
  • Column can be configured to originate from the centre or one end of scale
  • 8-character alphanumeric dot-matrix digital type display shows measurements either in absolute or comparative form
  • Exclusive 8 character alphanumeric dot-matrix digital type display for menu setting

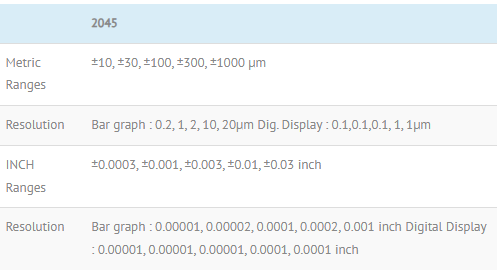

  • Five metric & five inch measuring ranges
₹ 64,289.00
₹ 64,289.00 ₹ 67,673.00
Sale Sold out

Price inclusive of 18% GST
Download Catalog
View full details

Product Details

no-img

FEATURES:

  • State-of-the-art technology with host of features, a must for today’s shop process quality engineering
  • Two level password, prevents unauthorized alteration
  • Multiple-level display intensity for operators comfort
  • Inch & metric measuring ranges
  • Static & dynamic measurement
  • Permits incorporation of complex formulae for probe combination
  • Display of tolerance and control limit status – supports process control
  • Classifies tolerance band into uniform or non-uniform tailor made grades
  • Permits menu entries up to 16 different settings for quick application changeover
  • Wide range of process control based electrical outputs facilitates automation
  • Auto calibration
  • Compatible with half bridge and LVDT type inductive measuring probe
  • RS232 based interface with real time tagged measurements
  • Aesthetically appealing, sturdy and ergonomic design, suitable for shop-floor applications
  • USB interface to PC and flash drive
