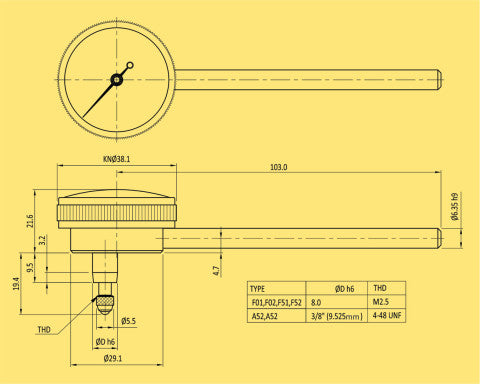

BAKER F51 / DIAL GAUGE BACK PLUNGER TYPE (0.001" L.C., RANGE 0.1", GRADUATION 0-50-0), 38 MM BEZEL DIA

BAKER F51 / DIAL GAUGE BACK PLUNGER TYPE (0.001" L.C., RANGE 0.1", GRADUATION 0-50-0), 38 MM BEZEL DIA

F51 / DIAL GAUGE BACK PLUNGER TYPE (0.001" L.C., RANGE 0.1", GRADUATION 0-50-0), 38 MM BEZEL DIA

MODEL 38 Back side plunger Dial gauge, Tungsten carbide ball anvil. Strong & smooth metal bezel, rigid brass case for more regidity.


₹ 2,526.00
₹ 2,526.00 ₹ 3,280.00
Sale Sold out

Price inclusive of 18% GST (GST Amount 349.27)

Download Catalog
View full details

Product Details

FEATURES:

  • An unique face reading dial gauge with sensing plunger at right angles to the dial
  • Every gauge carries a calibration certificate giving actual values
  • Spindle made of stainless steel
  • Fitted with tungsten carbide ball anvil
  • Rigid brass case for increased rigidity
  • Strong and smooth metal bezel
  • Suitable for mounting on machine tables, jigs and fixtures
  • Used in small places where standard dial gauges are difficult to be accomodated
  • Inch Gauges conform to ASME B89.1.10M
  • Special dial Gauges for OEMs also manufactured on request
  • Complete spares and after sales service available
