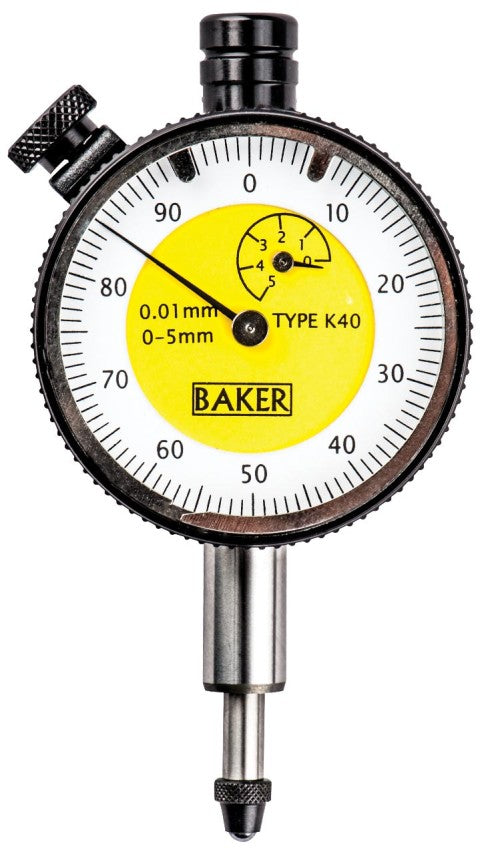

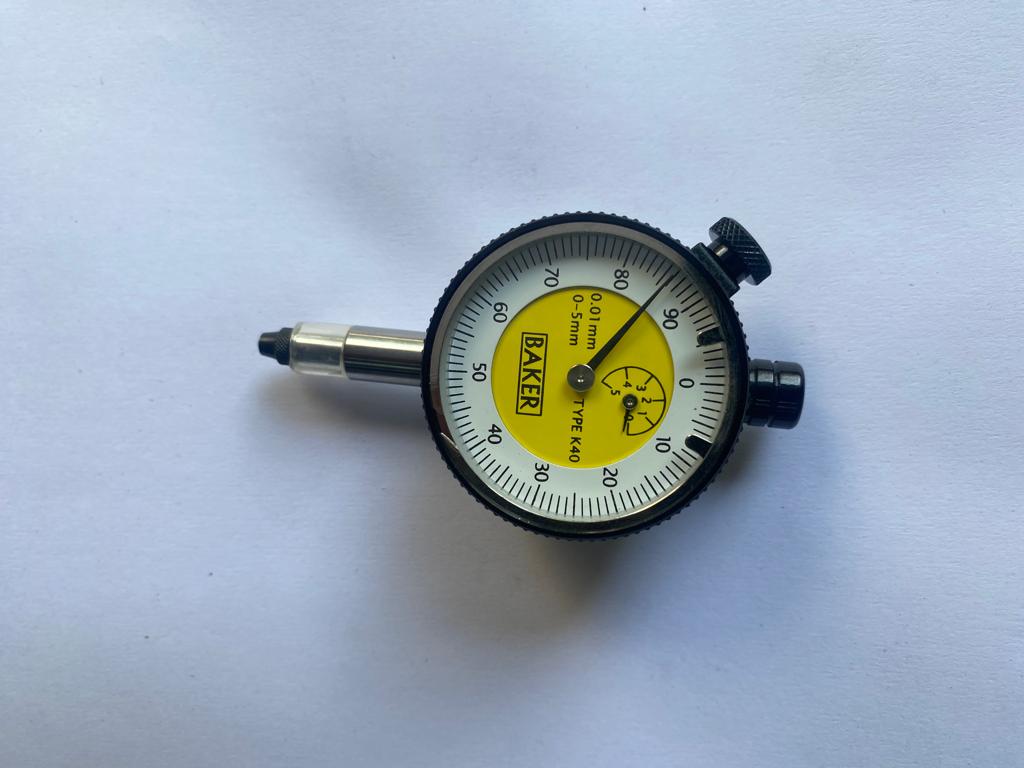

BAKER K40 / GAUGE PLUNGER TYPE (0.01 MM L.C., 5.0 MM RANGE, GRADUATION 0-100), 40 MM BEZEL DIA

BAKER K40 / GAUGE PLUNGER TYPE (0.01 MM L.C., 5.0 MM RANGE, GRADUATION 0-100), 40 MM BEZEL DIA

K40 / GAUGE PLUNGER TYPE (0.01 MM L.C., 5.0 MM RANGE, GRADUATION 0-100), 40 MM BEZEL DIA

MODEL 40 Mechanical SMALL diameter Plunger type Dial gauge, Fitted with Jewels, ideal for small bore gauges like 10 to 18mm, Tungsten carbide ball anvil, rigid case for increased strength.


₹ 2,199.00
₹ 2,199.00 ₹ 2,856.00
Sale Sold out

Price inclusive of 18% GST (GST Amount 304.92)

Estimated Dispatch Time:

Download Catalog
View full details

Product Details

FEATURES:

  • Specification: IS, DIN, ANSI & JIS
  • Small diameter dial – convenient for use where space is limited
  • Ideal for small Bore Gauges like 10 to 18 mm
  • Jeweled to give accuracy and longer operational performance

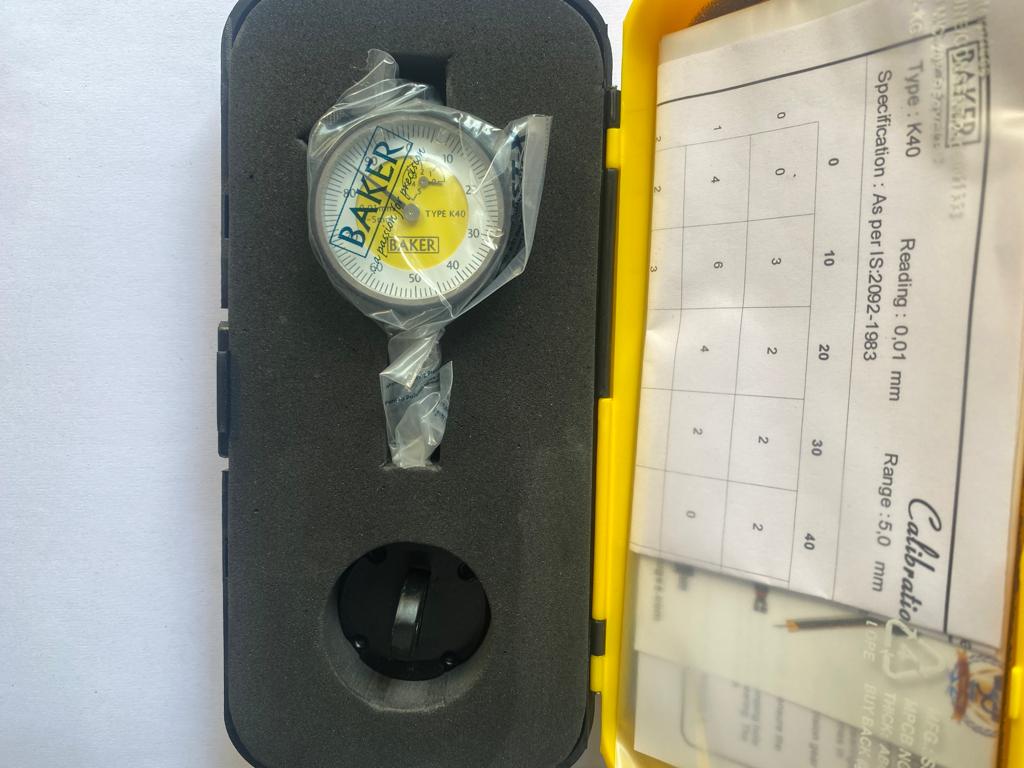

  • Each gauge carries a calibration certificate giving actual values
  • Spindle made of stainless steel
  • Fitted with tungsten carbide ball anvil
  • Rigid case for increased strength
  • Strong and smooth metal bezel
  • Supplied with tolerance pointers
  • Aesthetically appealing protective top cap in black colour
  • Metric Gauges conform to company standard
  • Inch Gauges conform to ASME B89.1.10M
  • Special dial Gauges for OEMs also manufactured on request
  • Complete spares and after sales service available
