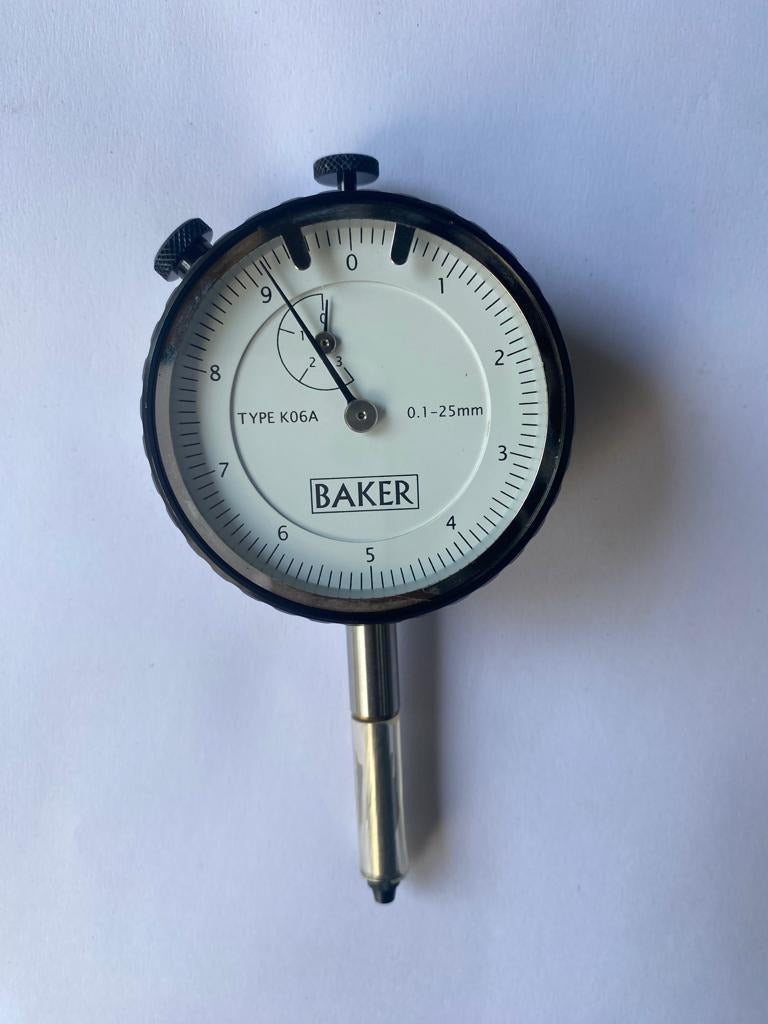

BAKER KO6A / DIAL GAUGE PLUNGER TYPE (0.1 MM L.C., 25 MM RANGE, GRADUATION 0-10), 56 MM BEZEL DIA

BAKER KO6A / DIAL GAUGE PLUNGER TYPE (0.1 MM L.C., 25 MM RANGE, GRADUATION 0-10), 56 MM BEZEL DIA

KO6A / DIAL GAUGE PLUNGER TYPE (0.1 MM L.C., 25 MM RANGE, GRADUATION 0-10), 56 MM BEZEL DIA

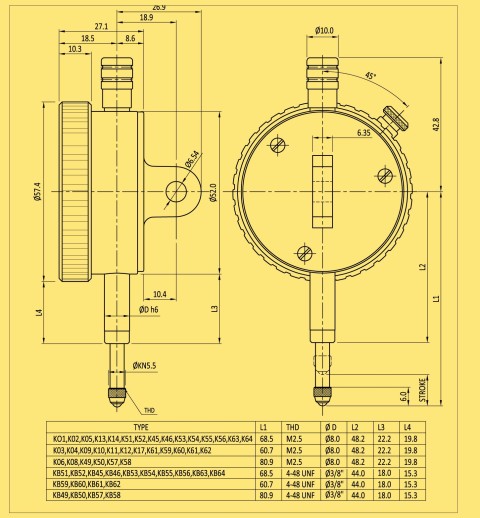

MODEL 56 Plunger Dial Gauge Range 0.8mm to 30mm / 0.08" to 1", Range 0.8mm/0.08inch, One revolution dial gauge. Shock proof, Hardened stem for free clamping, Rigid brass case.


₹ 1,885.00
₹ 1,885.00 ₹ 2,513.00
Sale Sold out

Price inclusive of 18% GST (GST Amount 275.40)

Estimated Dispatch Time:

Download Catalog
View full details

Product Details

FEATURES

  • Specification: IS, DIN, ANSI & JIS

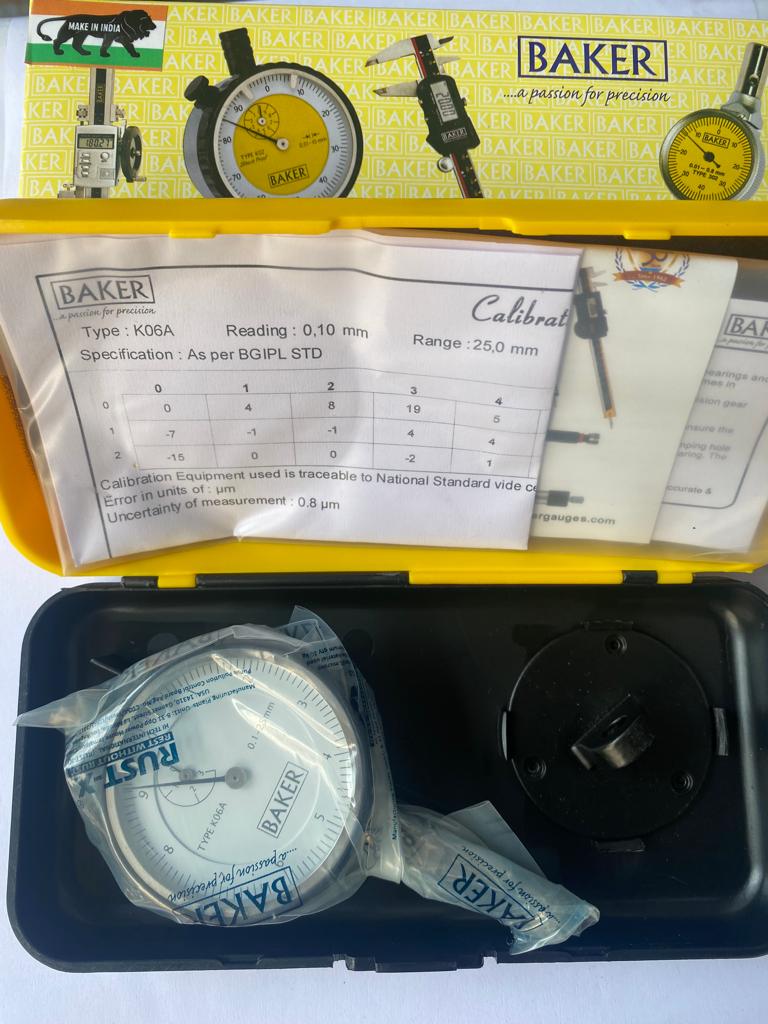

  • Every plunger dial gauge carries a calibration certification giving actual values
  • Hardened stem for trouble free clamping
  • Spindle made of stainless steel
  • Fitted with tungsten carbide ball anvil
  • Rigid brass case for increased rigidity
  • Strong and smooth metal bezel
  • Supplied with tolerance pointers
  • Aesthetically appealing protective top cap in black color
  • Special dial Gauges for OEMs also manufactured on request
  • Complete spares and after sales service available
  • 0.001mm x 1mm dial gauge fitted with 8 jewels and conforms to JIS B-7503
