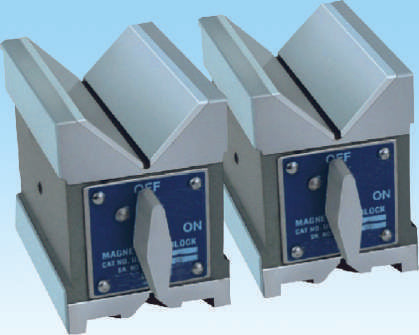

KRISHNA MAGNETIC V BLOCKS (TOP V HARDENED & GROUND) Series 201

KRISHNA MAGNETIC V BLOCKS (TOP V HARDENED & GROUND) Series 201

  • Used for grinding, light milling, drilling & inspection of round & square jobs.
  • Accuracy for flatness, squareness & paralleslism within 0.005mm upto 150 L & 0.010mm for 200 L of "V" block.
  • The bigger V angle & bottom holding surface are required with hardened strips for wear resistance.
  • Uniform and strong magnetic pull to all three magnetic surfaces top, bottom & V face.
  • Hardness of V face is 60 +/- 2 Rc.
  • Easy ON - OFF facility.
  • 120 ° " V" angle also available.
₹ 3,811.00
₹ 3,811.00 ₹ 4,484.00
Sale Sold out

Estimated Dispatch Time:

Download Catalog
View full details

Product Details

  • Used for grinding, light milling, drilling & inspection of round & square jobs.
  • Accuracy for flatness, squareness & paralleslism within 0.005mm upto 150 L & 0.010mm for 200 L of "V" block.
  • The bigger V angle & bottom holding surface are required with hardened strips for wear resistance.
  • Uniform and strong magnetic pull to all three magnetic surfaces top, bottom & V face.
  • Hardness of V face is 60 +/- 2 Rc.
  • Easy ON - OFF facility.
  • 120 ° " V" angle also available.
