KRISTEEL BORE GAUGES MODEL NO 1511

KRISTEEL BORE GAUGES MODEL NO 1511

  • To determine the Diameters of any bore, Insert the Bore gauge in the hole to be checked, the point where gauge contacts the bore given the dimension of the hole.
  • It measures the dimension from 1 mm. to 15 mm. with increment of 0.1 mm.
  • Also use full gage to check plate gap in welding geometry
₹ 317.00
₹ 317.00 ₹ 396.00
Sale Sold out

Price Inclusive of 18% GST

Estimated Dispatch Time:

Download Catalog
View full details

Product Details

  • MATERIAL: S.S.420 H & T. THICK = 1.0 mm.
  • RANGE: 1 – 15, 15 – 30, 30 – 45, 45 – 60 mm.
  • LEASTCOUNT: 0.1 mm.
  • FINISH: Polished (optional satin chrome)

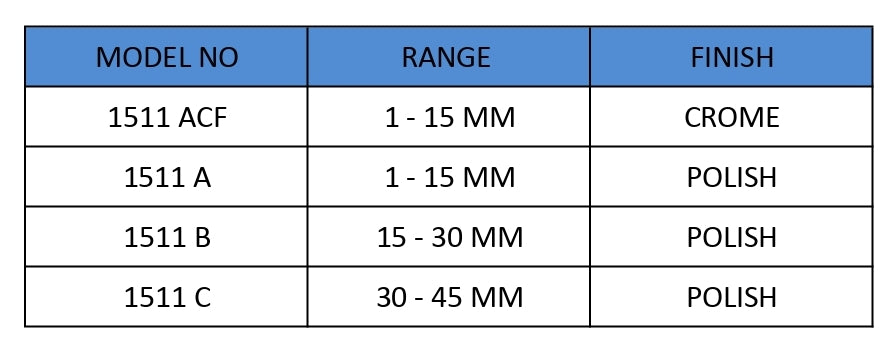

  • AVAILABLE MODELS:

    1. A – 1 – 15 mm.

    2. B – 15 – 30 mm.

    3. C – 30 – 45 mm.

    4. D – 45 – 60 mm

  • PACKING : Gauge is packed in PVC pouch.
