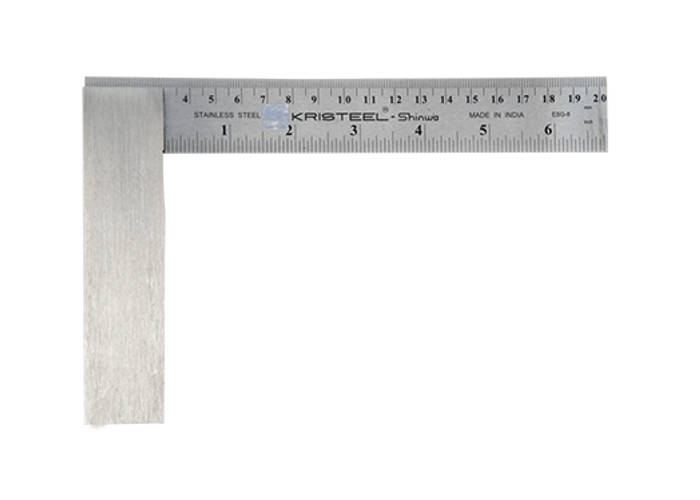

KRISTEEL ENGINEERS SQUARE GRADUATED
KRISTEEL ENGINEERS SQUARE GRADUATED
- This square is made out of steel stock and a hardened blade.
- The blade is fixed to the stock by taper pins.
- All faces are precision ground.
Price Inclusive of 18 % GST
Couldn't load pickup availability
Product Details
USES:
These precision ground and hardened all steel engineer’s squares are ideal for setting up tools, aligning blades, and ensuring parts are set up properly.
All surfaces are ground to ensure they are straight and parallel. Unlike wooden and adjustable squares, the grinding process helps ensure the engineer’s square is always accurate.
The beam is grooved at inside corner for clearance of sawdust or dirt.
The blade length is measured from the inner edge to the tip. Squareness accuracy is 0.002″. As per DIN std.
Material: Blade: Stainless Steel Stock: Tool Steel

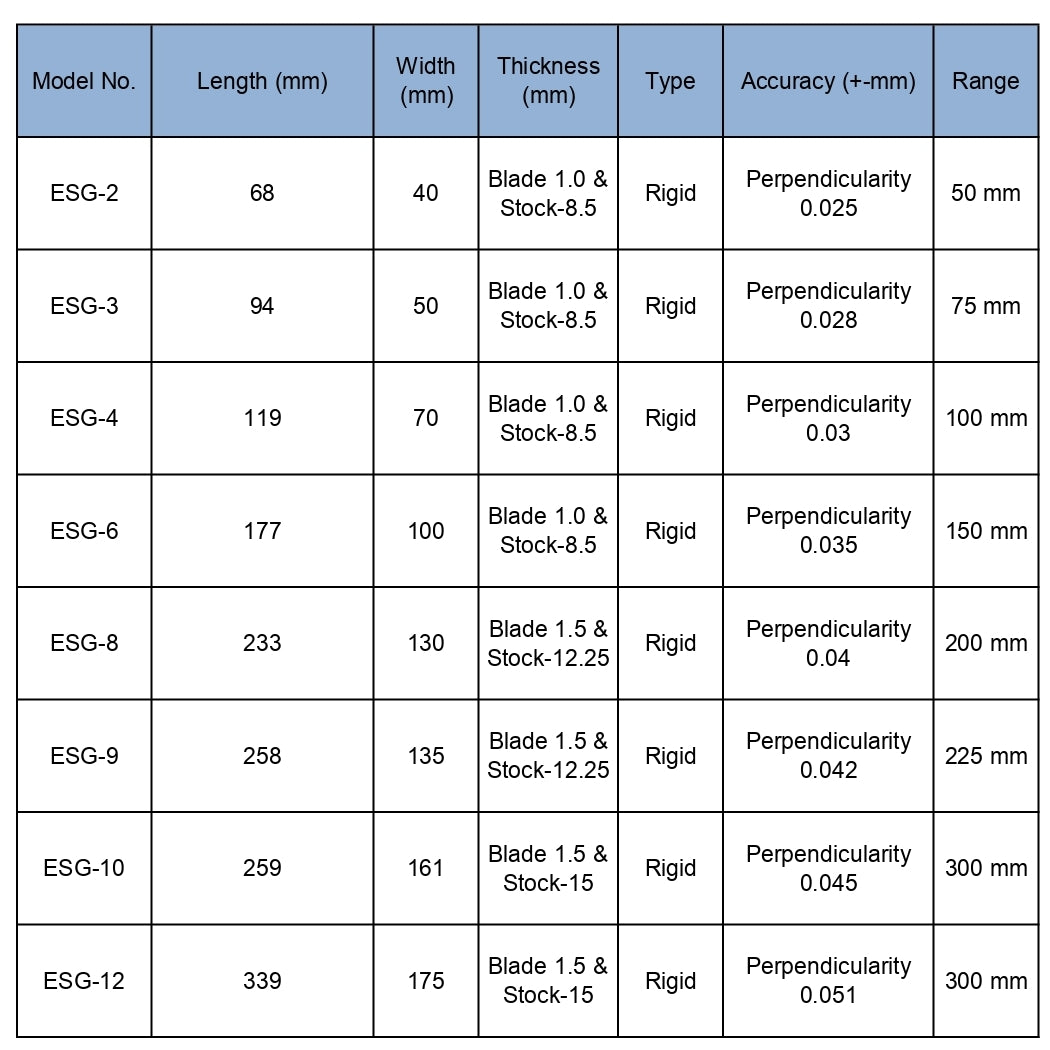

Range: 2″, 3″, 4″, 6″, 8″, 9″, 10 & 12″
Accuracy: EEC-I (+/- 0.2mm)
Finish: Polished
Standard: DIN875, GRADE II
Least Count: 1mm
Graduation: 1mm/1mm on both side
