KRISTEEL SCREW PITCH GAUGE

KRISTEEL SCREW PITCH GAUGE

  • The Screw Pitch Gauge is a precision measuring tool used to quickly identify and verify the pitch of internal and external threads.
  • Manufactured from high-quality hardened steel, it features accurately machined blades for reliable thread measurement.
  • Ideal for workshops, manufacturing, maintenance, and quality inspection applications.



₹ 4,042.00
₹ 4,042.00 ₹ 5,053.00
Sale Sold out

Price inclusive of 18% GST

Estimated Dispatch Time:

Download Catalog
View full details

Product Details

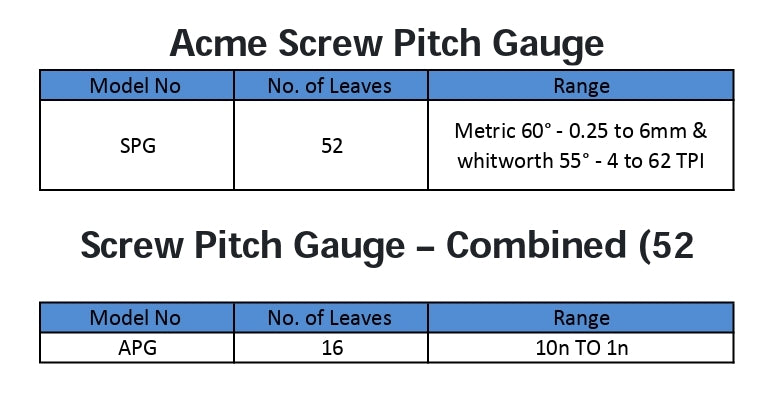

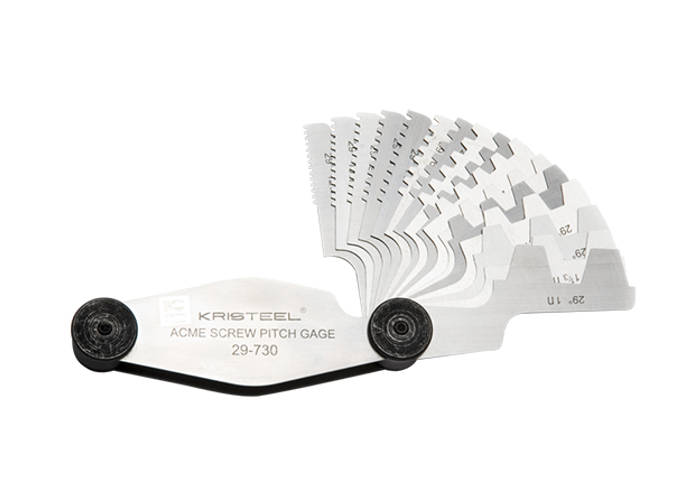

Acme Screw Pitch Gauge

  • To determine the TPI of Acme Threads of leadscrew.
  • Gauge made of stainless Steel by EDM Wire cutting and fine blanking process.
  • Gauge have 16 blades Duly fine edge profiled, Numbered TPI size on each blade.
  • Useful gauge in toolroom to check the leadscrew threading tool and to inspect the leadscrew.
  • Gauge is packed Plastic Box with Acme thread data sheet for Instant reference.
  • MATERIAL: 0.8 thick Stainless Steel 420 H & T.
  • RANGE: 0n to 1n (16 blades)°
  • ACCURACY: 10.04 mm.
  • FINISH: POLISHED BY TUMBLING

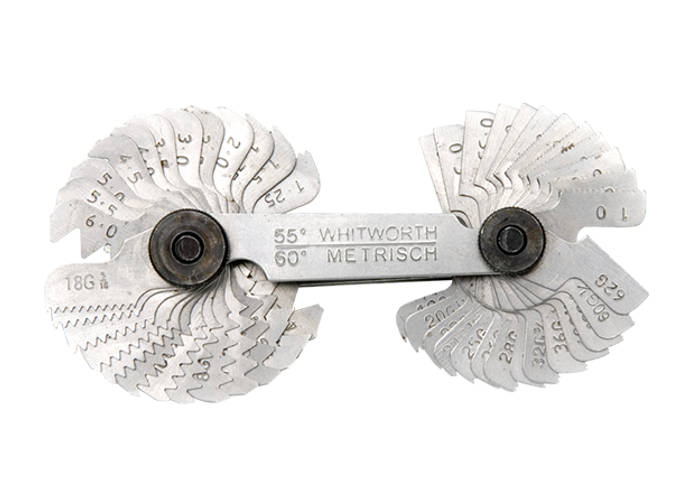

Screw Pitch Gauge – Combined (52 Leaves)

  • To check and determine the screws pitches for ISO Metric threads and With worth 55 degree and United Nations threads unf/unc 60°.
  • MATERIAL: Carbon Steel
  • RANGE: 30 leaves 4-80 tpi (55°) and Metric 60°
  • LEASTCOUNT: –
  • FINISH: POLISHED
