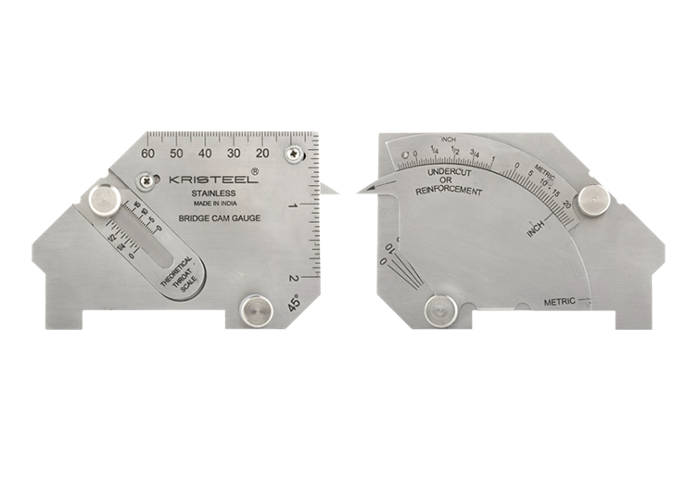

KRISTEEL WELDING GAUGE BRIDGE CAM (BCWG)

KRISTEEL WELDING GAUGE BRIDGE CAM (BCWG)

  • This rugged gauge, fabricated in Stainless steel, will measure the important dimensions of weld preparations and of completed Butt and Fillet welds.
  • lt is intended for general fabrication work in the shop or on-site and rapidly measures the following weld features: Angle of preparation (0 to 60°), Excess weld metal, fillet weld leg length, Throat size, Misalignment and hole sizes for butt weld and but weld reinforcement.
  • General linear measurements up to 60 mm or 2 inches.
₹ 2,091.00
₹ 2,091.00 ₹ 2,614.00
Sale Sold out

Price Inclusive of 18% GST

Estimated Dispatch Time:

Download Catalog
View full details

Product Details

Available other models:
1) Multipurpose Weld gauge  2) Automatic Weld gauge

  • Adjustable scale, Miter slide, Main quadrant.

  • To check undercut

  • To check excess weld metal (butt weld reinforcement)

  • To check fillet leg length

  • To check fillet weld throat actual & theoretical (mm/ inch)

  • To check angle of preparation for butt weld

  • To check misalignment in butt weld

  • MATERIAL: Base in Stainless Steel 430 thick-2.0 and scale in S.S.202 thick=1.0 mm

  • RANGE: as per given in following diagrams.

  • LEASTCOUNT: 0.01 mm.

  • FINISH: Polished

  • PACKING :Scales graduated in metric units, Supplied in a protective case and Instruction leaflet
