KRISTEEL WELDING GAUGE POCKET TYPE FILLET (PTFWG)

KRISTEEL WELDING GAUGE POCKET TYPE FILLET (PTFWG)

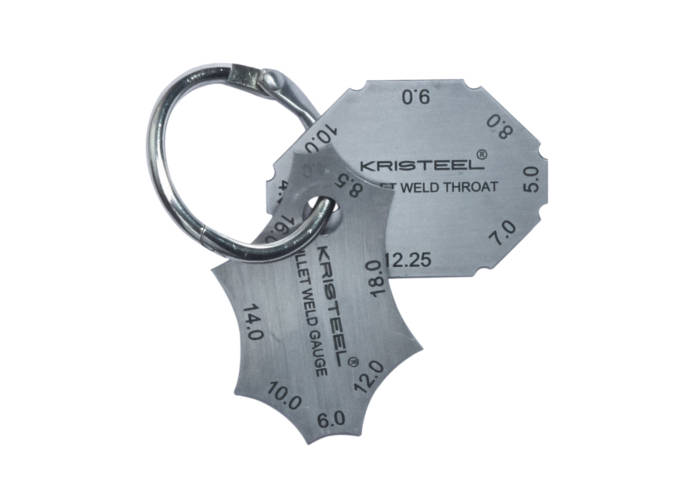

  • This gauge is made set of 2 blades in stainless steel with permanent markings.
  • Gauge leaf can check welding actual throat size and fillet weld leg sizes.
  • Both leaves assembled in handy chain and packed in PVC pouch
  • Useful to welding, Maintaince dept., and quality dept.
₹ 912.00
₹ 912.00 ₹ 1,140.00
Sale Sold out

Price Inclusive of 18% GST

Estimated Dispatch Time:

Download Catalog
View full details

Product Details

FEATURES :


  1. This gauge is made set of 2 blades in stainless steel with permanent markings.
  2. Gauge leaf can check welding actual throat size and fillet weld leg sizes.\
  3. Useful to welding, Maintaince dept., and quality dept.



  • MATERIAL: Stainless Steel

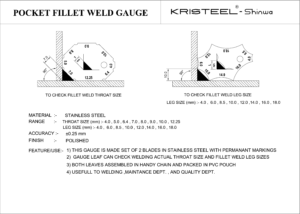

  • RANGE: Throat size (mm): – 4.0, 5.0, 6.4, 7.0, 8.0, 9.0, 10.0, 12.25. Leg size (mm): – 4.0, 6.0, 8.5, 10.0, 12.0, 14.0, 16.0, 18.0.
  • ACCURACY: – +/-0.25 mm
  • FINISH: POLISHED
  • PACKING : Both leaves assembled in handy chain and packed in PVC pouch
