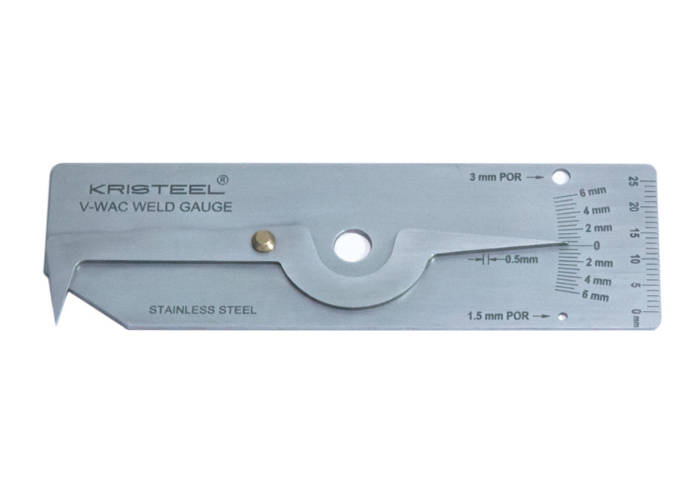

KRISTEEL WELDING GAUGE V WAC (VWWG)

KRISTEEL WELDING GAUGE V WAC (VWWG)

  • To check undercut depth near welding area, range from 0-6 mm with least count of 0.5 mm.
  • To check but weld crown or reinforcement height, range from 0-6 mm with least count of 0.5 mm.
  • Porosity size comparison, range for dia. 1.5 & 3.0 mm.
  • Amount of porosity per 25 mm, least count = 1.0 mm.
₹ 1,672.00
₹ 1,672.00 ₹ 2,090.00
Sale Sold out

Price Inclusive of 18% GST

Estimated Dispatch Time:

Download Catalog
View full details

Product Details

FEATURES :

  1. This gauge is made set of stainless steel with permanent markings.

  2. Gauge pointer is easy to set & lock screw hold it in position for later reference.

  3. All four required measurements are made with a single gauge.

  4. Useful to welding, Maintaince dept., and quality dept.

  • MATERIAL: STAINLESS STEEL

  • RANGE: 0 – 6 mm WITH LEAST COUNT OF 0.5 mm, GRADUATED SCALE 25 mm. WITH L.C. OF 1.0 mm.

  • ACCURACY: – +/-0.25 mm

  • FINISH: POLISHED
