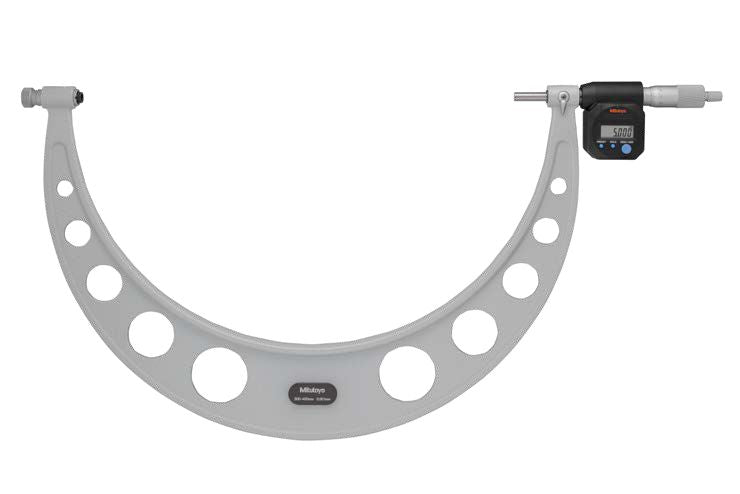

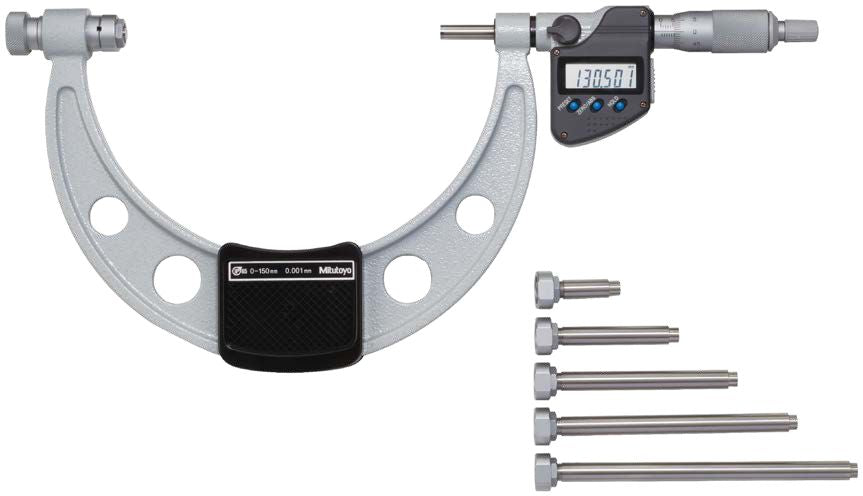

MITUTOYO SERIES 340 OUTSIDE MICROMETER WITH INTERCHANGEABLE ANVILS

MITUTOYO SERIES 340 OUTSIDE MICROMETER WITH INTERCHANGEABLE ANVILS

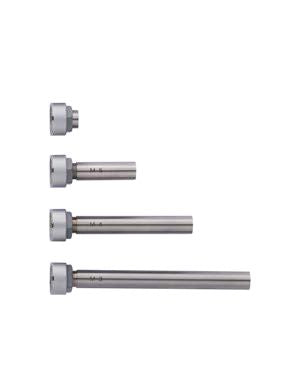

  • Wide measuring range with interchangeable anvils.
  • Measuring face of the spindle is carbide tipped (standard model).
  • IP 65 water/dust protection (series 340). * Models with a measuring range up to 300mm.
  • Equipped with Ratchet Stop for constant measuring force.
₹ 43,154.00
₹ 43,154.00 ₹ 56,782.00
Sale Sold out

Price Inclusive of 18% GST

Estimated Dispatch Time:

Download Catalog
View full details

Product Details

no-img

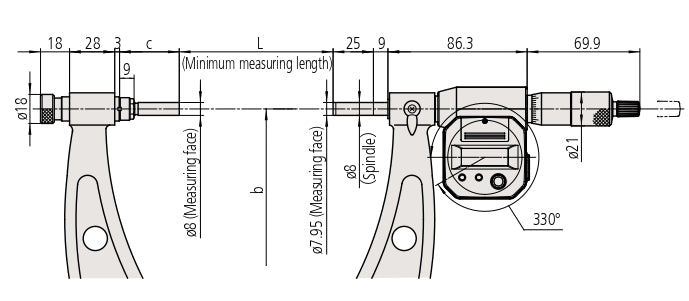

 L : Range (mm)b
Range 300 - 400 mm models300 - 325325 - 350350 - 375375 - 400224
Range 400 - 500 mm models400 - 425400 - 425450 - 475475 - 500273
Range 500 - 600 mm models 500 - 525500 - 525550 - 575575 - 600332
Range 600 - 700 mm models 600 - 625600 - 625650 - 675675 - 700382
Range 700 - 800 mm models 700 - 725725 - 750750 - 775775 - 800430
Range 800 - 900 mm models 800 - 825825 - 850850 - 875875 - 900480
Range 900 - 1000 mm models 900 - 925925 - 950950 - 975975 - 1000530
Code No. 304001304002304003304004
c : Overall (mm)84623712
Interchangeable anvilM3M4M5M6
