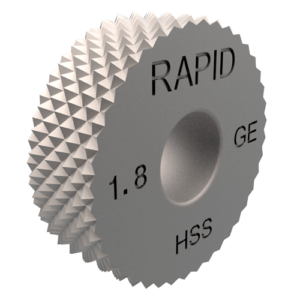

RAPID GE (Knurl Size 20x08x06 | 20x10x06 | 20x12x06 MM) MALE DIAMOND KNURLING WHEELS

RAPID GE (Knurl Size 20x08x06 | 20x10x06 | 20x12x06 MM) MALE DIAMOND KNURLING WHEELS

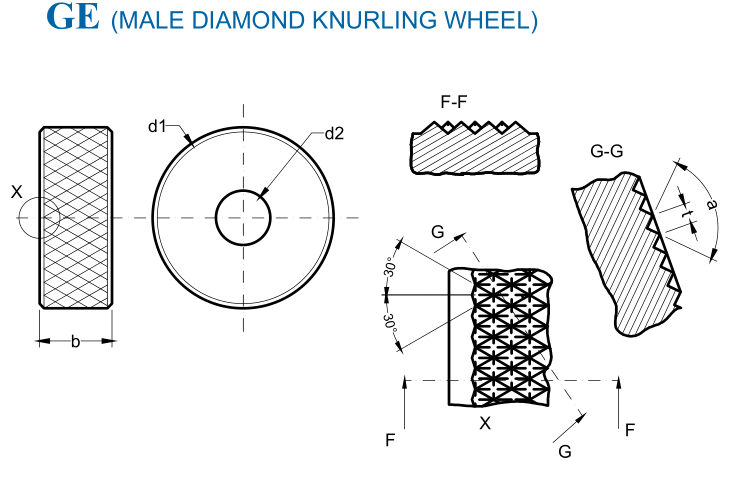

GE Male Diamond Knurling Tool tool is used for obtaining FEMALE diamond pattern at given helical angle on the surface.

₹ 13,275.00
₹ 13,275.00 ₹ 14,750.00
Sale Sold out

Price inclusive of 18% GST

Estimated Dispatch Time:

View full details

Product Details

KNURL SIZE :
20x08x06, 20x10x06,  20x12x06 MM


KNURL PITCH :
0.4, 0.5, 0.6,0.7, 0.8, 0.9, 1.0, 1.2, 1.5, 1.6, 1.8, 2.0, 2.5

(0.1, 0.2, 0.3 Non-Standard size also available .Price on request)


RAPID KNURLS FEATURES:
· HSS knurls with Bore and Face ground
· Milled sharp Edge Profile
· better Form Pr ofile
· Highest Productivity on ferrous & non ferrous material
· long life of tool on job which offer cost per part is negligible
