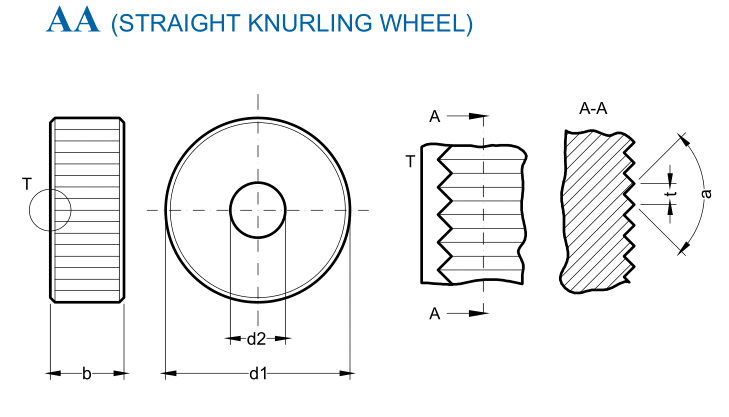

KNURL SIZE :
10x04x04, 15x04x04, 20x08x06, 20x10x06 MM

KNURL PITCH :
0.4, 0.5, 0.6,0.7, 0.8, 0.9, 1.0, 1.2, 1.5, 1.6, 1.8, 2.0, 2.5
(0.1, 0.2, 0.3 Non-Standard size also available.Price on request)

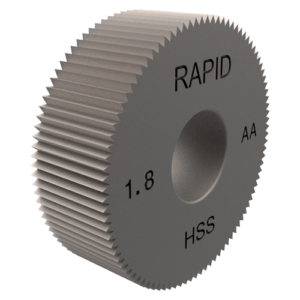

RAPID KNURLS FEATURES:
· HSS knurls with Bore and Face ground
· Milled sharp Edge Profile
· better Form Profile
· Highest Productivity on ferrous & non ferrous material
· long life of tool on job which offer cost per part is negligible
